Description
DETAILS:

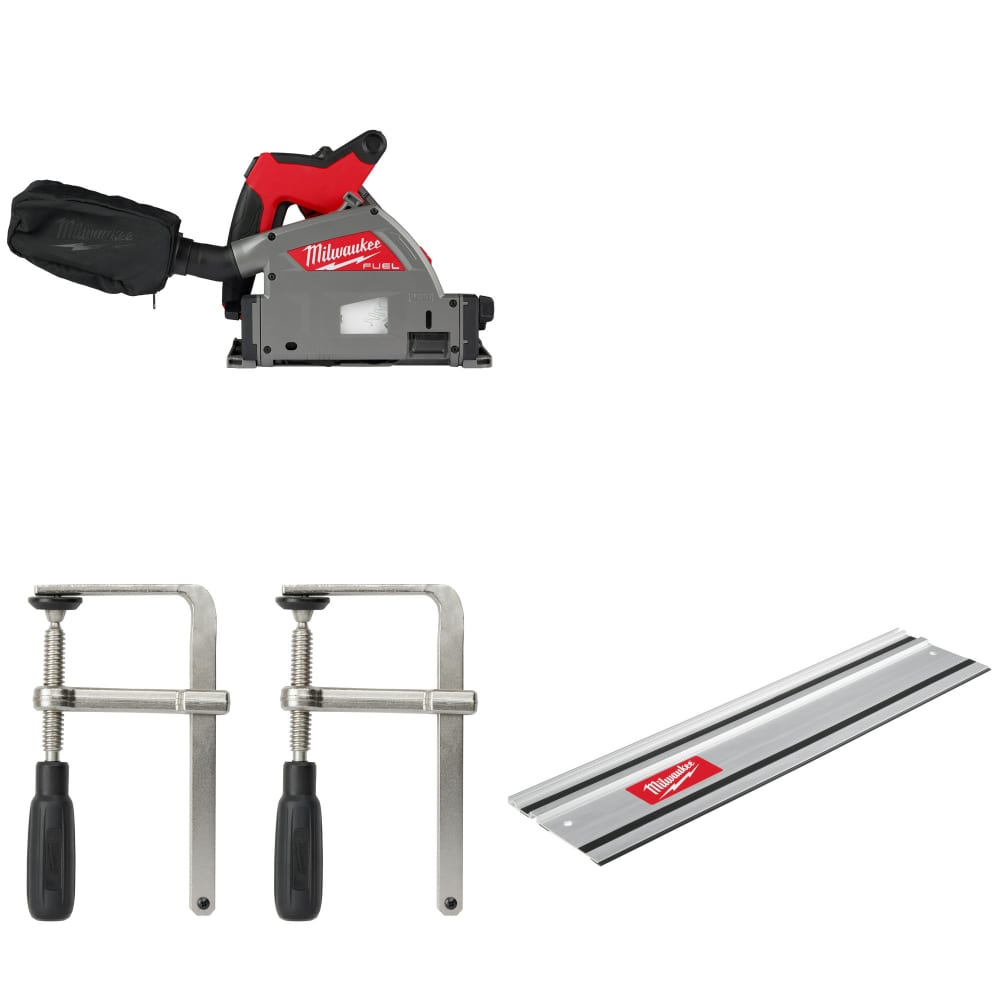

INCLUDES:
• (1) 2831 Plunge Track Saw
• (1) 48-08-0573 Guide Rail Clamps
• (1) 48-08-0570 31 Guide Rail
• (1) Blade
FEATURES:
• POWERSTATE brushless motor provides the power and speed to cleanly cut through tough materials
• Vac port and dust bag for less mess and time spent cleaning up
• Quick locking blade change system for easy blade changes
• Smooth plunging action for easy plunge cuts
• Variable speed dial for setting blade RPM to your application
• Adjustable cam system to allows user to dial in track to rail fitment for laser straight cuts
• Riving knife keeps materials from pinching on blade and reduces kickback
• Easy slide depth scale allows for quick and accurate adjustments
• Onboard Allen wrench storage for easy blade changes
• Bevel stops at 22.5, 45 and 48 Degrees
• Micro adjust depth knob for perfect depth setting
• Compatible with 1-7/8 Vac hoses
SPECIFICATIONS:
• Electric - Cordless
• Saw Drive - Sidewinder Geared
• Saw Blade Diameter (in) - 6½ in
• Blade Location - Right
• Maximum RPM - No Load - 6500
• Housing Material - Glass Filled Nylon, Magnesium
• Shoe Material - Cast Magnesium
• Color / Finish - Black, Gray, Red
• Net Tool Weight (lbs) - 9.13
• Depth Adjustment - Yes
• Maximum Cut Depth @ 45° (in) - 1.5625
• Maximum Cut Depth @ 90° (in) - 2.25
• Maximum Cut Depth @ 45° When On Track (In) - 1.5625
• Maximum Cut Depth @ 90° When On Track (In) - 2.25
• Length (in) - 14.3
• Width (in) - 8.7
• Height (in) - 10.8
• Bevel Capacity (°) - 48
• Bevel Stop - Yes
• Bevel Presets - 0°, 22.5° & 45°
• Arbor Size (in) - 0.787
• Variable Speed - Yes
• Plunge-Cut Capable - Yes
• Riving Knife - Permanently Attached
• Number of Batteries Required - 1
• Number of Batteries Included - 0
• Battery Composition - Lithium-Ion (Li-ion)
• Battery Voltage (V) - 18
• Charger Included - No
• Tool-Less Blade Changing - No
• Blade Wrench Included - Yes, Stored on Tool
• Dust Port - Yes
• Dust Port Outside Diameter (in) - 1.875
• Guide(s) - 31 in, 55 in, 106 in (not included)
• Main Handle Type - Pistol Grip
• Blades Included - 1
• Blade Type - General Purpose
• Blade Material - Cobalt Infused Tungsten Carbide
• Product Storage Included - No Case Included
• Manufacturer Warranty - 5 Year
• UL Listed - Yes
Designed for the professional carpenter and remodeler, the M18 FUEL 6-1/2” Plunge Track Saw from Milwaukee delivers the Power to rip solid hardwoods, over 90% dust collection efficiency while providing the portability and precision users demand from a plunge saw. The POWERSTATE Brushless motor provides 6,300 RPM for finish quality and clean cuts. REDLINK PLUS intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. The M18 REDLITHIUM HIGH OUTPUT XC6.0 battery delivers more cuts per charge and great durability than the competition. The saw features a variable speed dial allowing for setting the speed of your application. The smooth, pivoting plunge motion allows for precision plunge cuts with an accurate depth of cut.
